Feature
- German #4 Fiber Reticle Highly Visible Center Dot Even Under Strongest Sunlight Condition during Hunting
- LaREE HD Lens with Fully Multi-Coated Presents Clear and Bright Images, Enhancing Hunting Experience
- True 1x Power Enables Two-Eyes-Open Shooting, Long Eye Relief Benefits Situational Awareness
- 30mm Tube Dia Enhances Elevation and Windage Adjustment Range to 52 MIL to Compensate Bullet Drop
Specification
| Specification |
Details |
| Magnification: |
1-6x |
| Objective Lens Dia: |
24 mm |
| Focal Plane: |
Second Focal Plane |
| Eye Relief: |
100 mm / 4.0 in |
| Lens Coating: |
Fully Multi-Coated |
| Linear Field of View @ 100 yd: |
122.4-19.2 ft @ 100 yards |
| Linear Field of View @ 100 m: |
40.8-6.4 m @ 100 meters |
| Angular Field of View °: |
22.2-3.67 ° |
| Reticle: |
German #4, Fiber |
| Tube Dia: |
30 mm |
| Parallax Setting: |
100 yards |

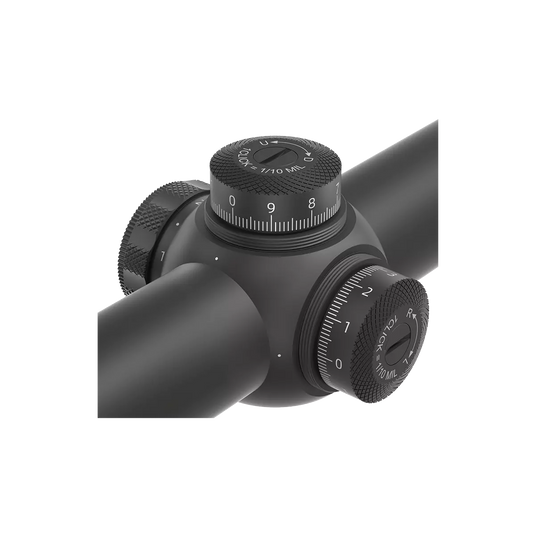

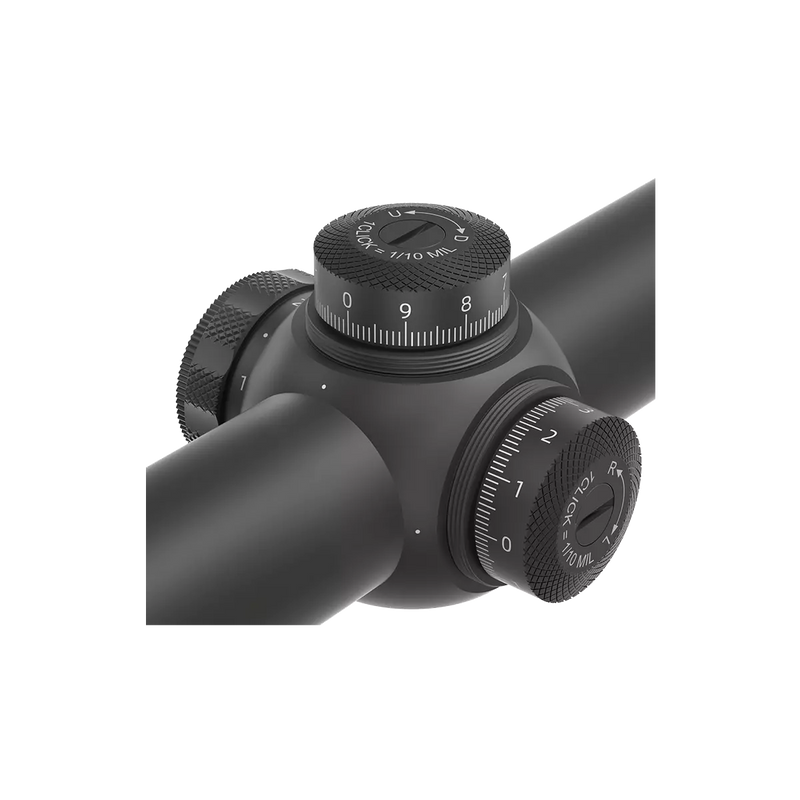

| Click Value: |
1/10 MIL |
| Turret Function: |
N/A |
| Elevation Adjustment Range: |
≥ 52 MIL |
| Windage Adjustment Range: |
≥ 52 MIL |
| Diopter Compensation: |
-2 to +2 |
| Illumination Setting: |
6 Gears, On/Off Switch |
| Battery Type (Not Include): |
CR2032 |
| Waterproof: |
IP56 |
| Fogproof: |
Nitrogen Filled |
| Shockproof: |
1000 G |
| Housing Material: |
6061-T6 Aluminum Alloy |
| Finish: |
Matte Black |
| Length: |
257 mm / 10.1 in |
| Weight: |
510 g / 18.0 oz |

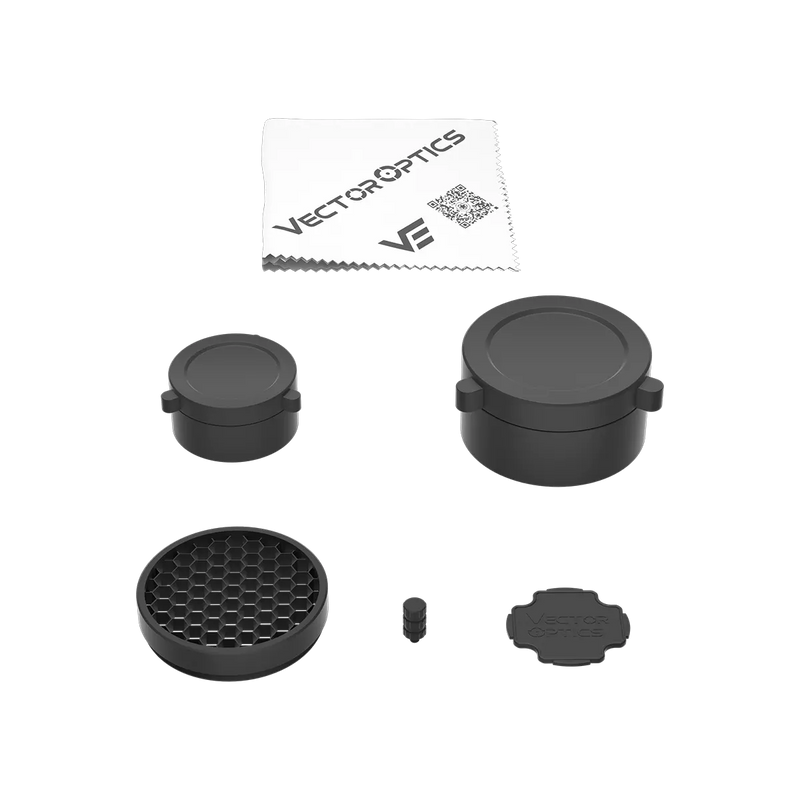

| Items in the Package: |
Lens Caps, User Manual, Plastic Wrench, Power Throw Lever, Honeycomb Sunshade, Cleaning Cloth, 30mm Weaver Rings. |
Size
Reticle
Download
SCOC-50 Grizzly 1-6x24i HD User Manual
