Feature
· Spring-Piston Recoil Rated: 1000G Shockproof Rated Build Engineered for High-Power
Recoil in Airgun Shooting
· Compact 1" Monotube Design: A 25.4mm (1”) Tube Enhances Portability for Field Use
· Sharp Focus at Any Range: Adjustable Objective for Parallax Correction from 5 Yards to Infinity
· Clear Visibility in Any Light: 5-Level Green & Red Dual-Color Illumination Adapts to Different Environments
· Bright and Crisp Viewing: Fully Multi-Coated Lens Provides Edge-to-Edge Image Clarity
· Comfortable and Safe Shooting Position: 4-Inch Extended Eye Relief Prevents Scope Bite
· Improved Target Visibility in Sunlight: Sunshade Included to Reduce Glare and Reflection
Specification
| Specification | Details |
|---|---|
| Magnification: | 3-9x |
| Objective Lens Dia: | 40 mm |
| Focal Plane: | Second Focal Plane |
| Eye Relief: | 100 mm |
| Lens Coating: | Fully multi-coated |
| Linear Field of View @ 100 yd: | 28.8-10.2 ft @ 100 yards |
| Linear Field of View @ 100 m: | 9.6-3.4 m @ 100 meters |
| Angular Field of View: | 5.5-1.95° |
| Reticle: | VNM-1 MIL, Wire |
| Tube Dia: | 25.4 mm / 1 in |
| Parallax Setting: | 5 yards to Infinity |
| Click Value: | 1/10 MIL |
| Turret Function: | N/A |
| Elevation Adjustment Range: | >18 MIL |
| Windage Adjustment Range: | >18 MIL |
| Diopter Compensation: | -2 to +2 |
| Illumination Setting: | 5 Gears, Red and Green |
| Battery Type (Not Include): | CR2032 |
| Waterproof: | IPX4 |
| Fogproof: | Nitrogen Filled |
| Shockproof: | 1000 G |
| Housing Material: | 6061-T6 Aluminum Alloy |
| Finish: | Matte Black |
| Length: | 317 mm / 12.48 in |
| Weight (Net): | 520 g / 18.3 oz |

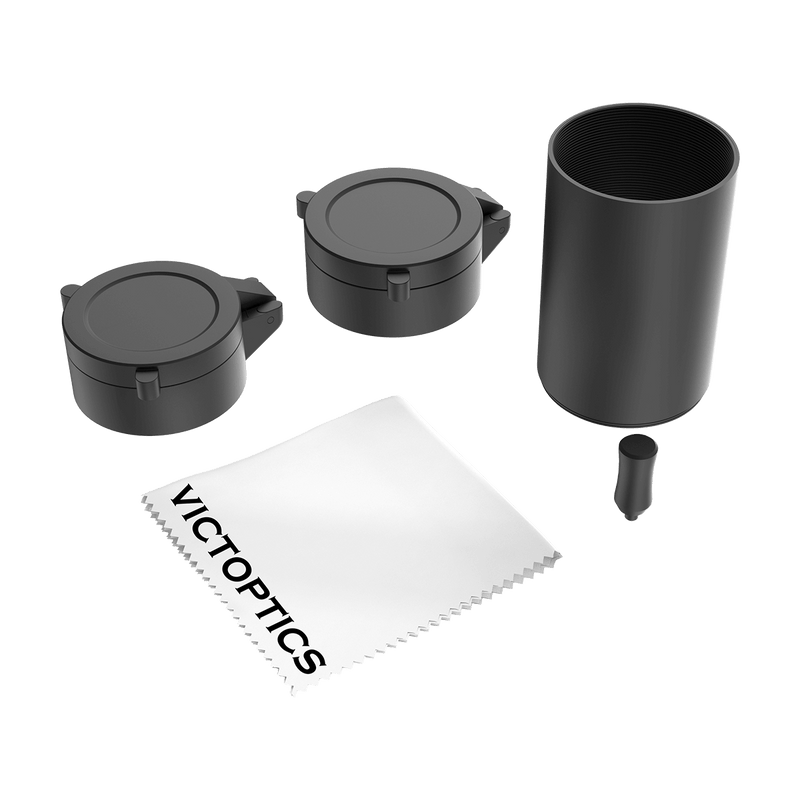

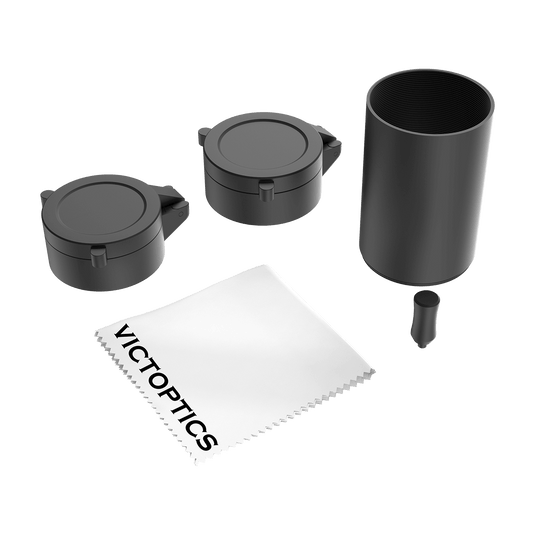

| Items in the Package: | User Manual, Cleaning Cloth, Flip Caps, Sunshade, Power Throw Lever, etc. |

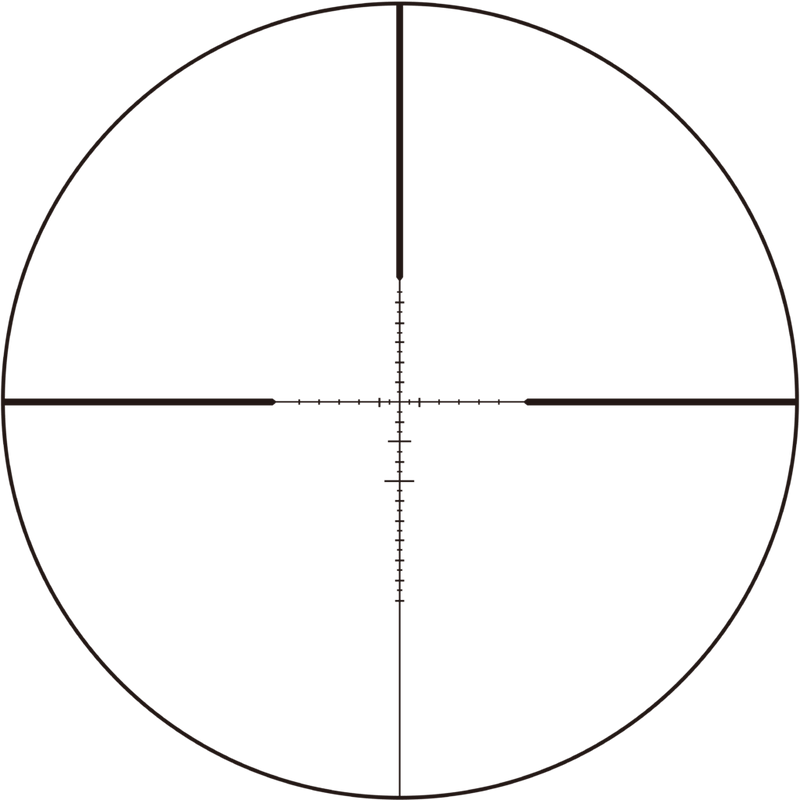

Reticle
Size
